Berthold Technologies LB 983 NightOWL II in vivo Imaging System

Codice prodotto. 31908716
Cambia vista
Click to view available options
Colore:
Blue, Gray
Dimensione della confezione:
Pezzo
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Codice prodotto. Colore unitSize
31908716 Blue, Gray Pezzo
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Les retours ne sont pas autorisés pour ce produit. Consulta la politica di reso
Codice prodotto. 31908716 Fornitore Berthold Technologies N. del fornitore 4050830

Please to purchase this item. Need a web account? Register with us today!

Les retours ne sont pas autorisés pour ce produit. Consulta la politica di reso

Descrizione

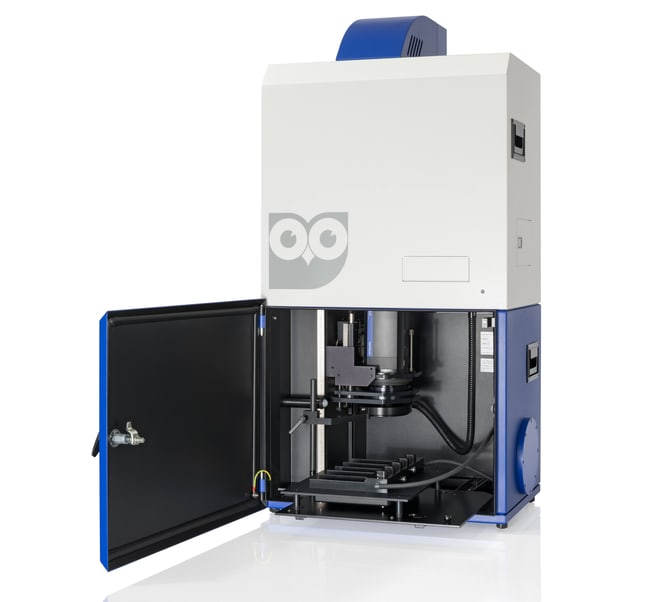

The NightOWL II provides a modular, easy to use optical in vivo imaging system, delivering high sensitivity and resolution. With various light-sources and light-tight ports to insert cables, fibre optics or manipulators, it provides the flexibility you need for any in vivo imaging application.

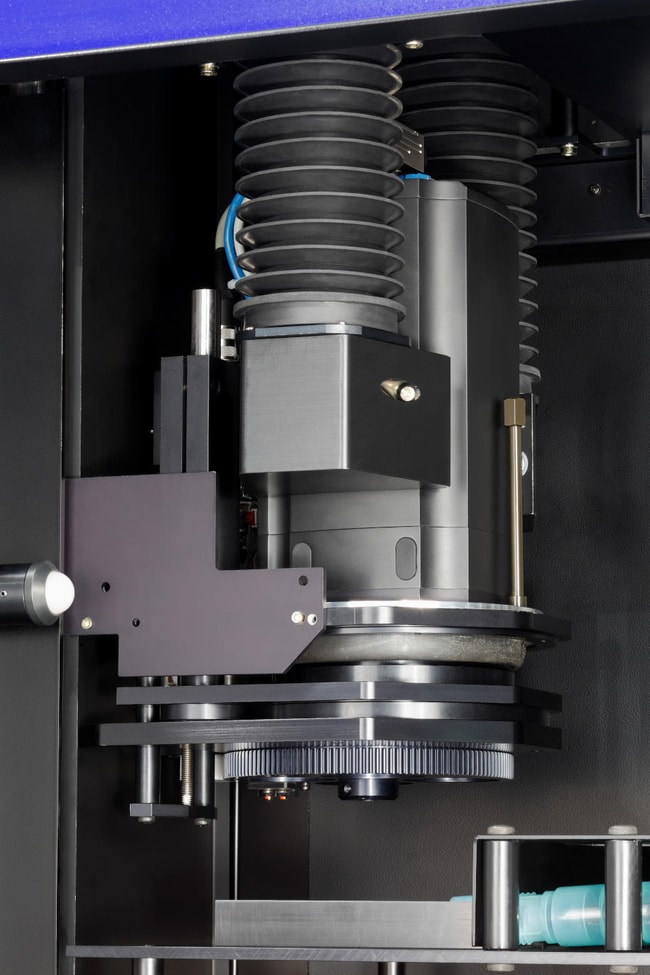

  • Ultrasensitive back-illuminated (backlit) CCD camera with high quantum efficiency over the entire visible to near-infrared spectrum for luminescence and fluorescence.
  • Efficient cooling of the array (absolute -80 to -90°C depending on the room temperature) to ensure very low noise, so that long exposure times can be used to integrate the signal over time and detect even very weak light signals.

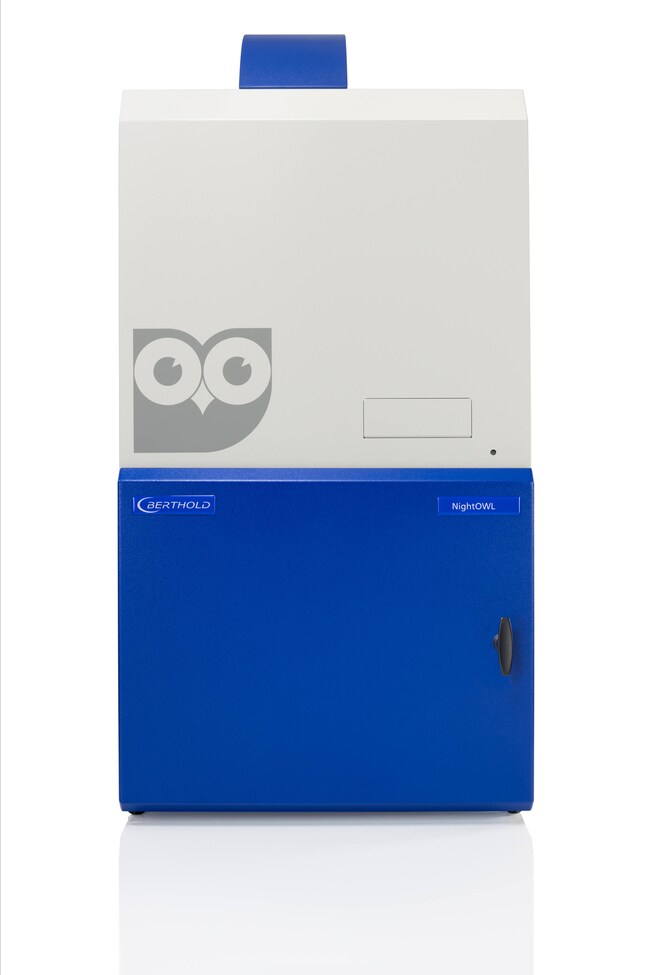

  • Light-tight cabinet, preventing any interferences from ambient light.

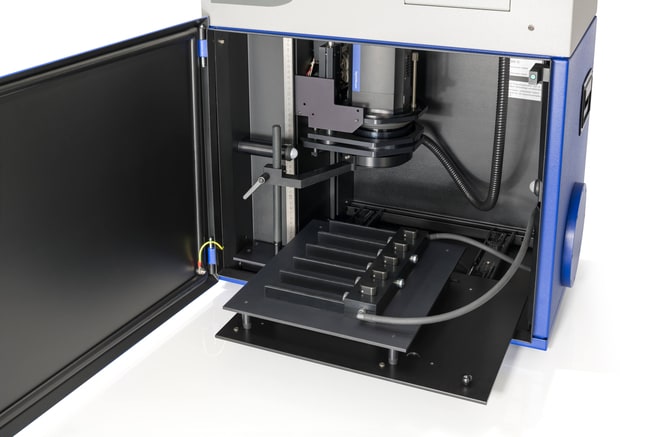

  • Motor-driven camera to achieve optimum resolution and focus of the sample.The camera can be moved from a height of 50 mm to 725 mm allowing focussing on every sample size up to 250 mm. A macro table is available for close-ups.

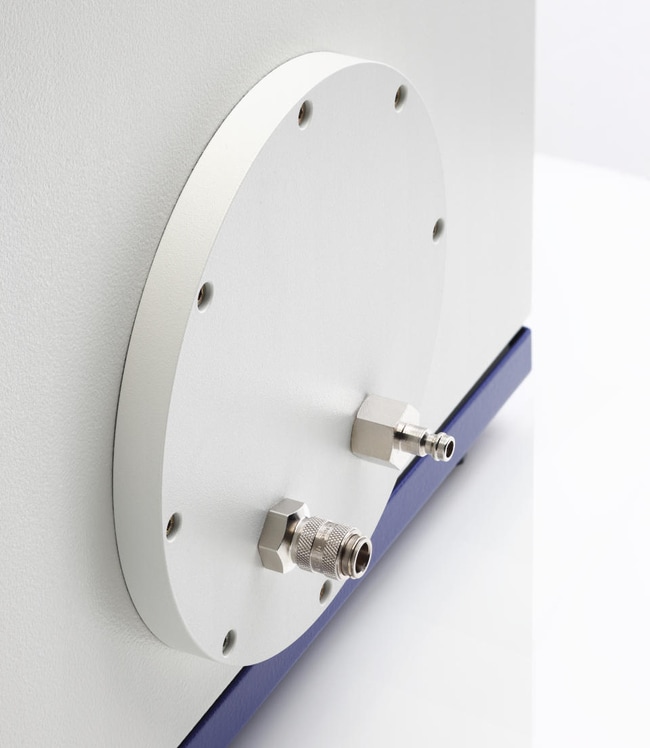

  • Flange option that provides light-tight access to the inner part for tubing, cables or even fibre optics, e. g. for special illumination of plants. The flange can be customized for special purposes.
  • Available accessories include various light-sources for different applications, gas anaesthesia unit, heating table to mantain optimum body temperature, and more.

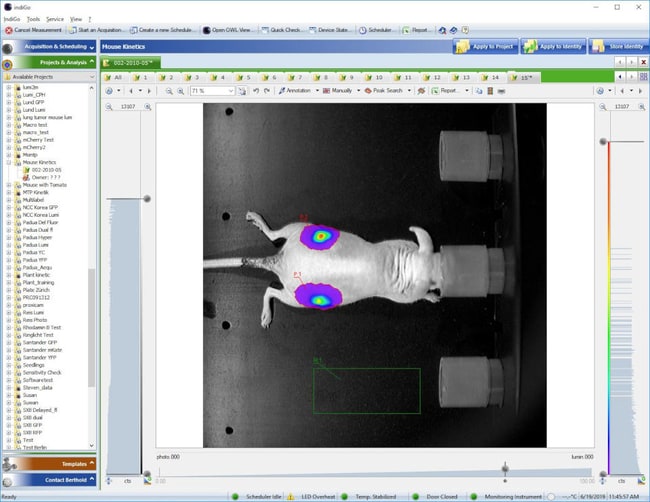

  • The user-friendly IndiGO™ software controls the instrument and makes image processing easy. It provides easy wavelength management and optional 21 CRF part 11 compliance, animal alignment and digital mouse atlas alignment option.

Specifica

Tipo Imaging System
Da utilizzare con (applicazione) In Vivo Imaging
Colore Blue, Gray
Sistema operativo Windows
Software IndiGO
Profondità (sistema metrico) 400 mm
Altezza (sistema metrico) 1220 mm
Peso (sistema metrico) 85 Kg
Larghezza (sistema metrico) 600 mm
Certificazione/Conformità CE, EN
Requisiti elettrici Min. 3 Sockets
Frequenza 50/60 Hz
Tensione 100/240 V
Wattage Max 400 VA
