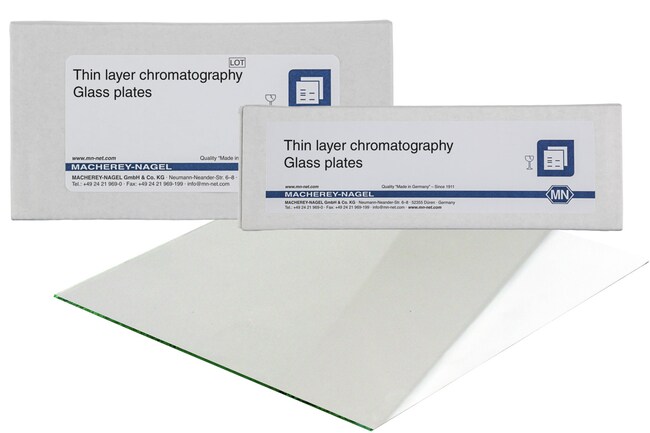

Macherey-Nagel™ Standard SIL G Silica Layers on Glass Plates

Product Code. 16593850 Shop All Macherey-Nagel Products
Change view
Click to view available options
Quantità:
200 Pc.
Unit Size:
pezzi 200
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Product Code. Quantità unitSize
16593850 200 Pc. pezzi 200
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
This item is not returnable. View return policy
Product Code. 16593850 Supplier Macherey-Nagel™ Supplier No. 809017.200

Please to purchase this item. Need a web account? Register with us today!

305.90 EUR valido fino al 2026-06-30
MIGLIOR PREZZO in promozione! Usa il codice promo "27990" per avere il tuo prezzo promozionale.
This item is not returnable. View return policy

Description

Standard TLC glass plates coated with a soft layer of unmodified silica gel for analytical and preparative use, available with UV indicators and offered on glass, aluminum, and polyester supports.

  • Glass TLC plates, SIL G/UV 254
  • Pre-coated, ready-to-use plates
  • Broad range of plate sizes, surface coatings, and backings

Absorbent (Silica 60)

  • Specific surface (BET): 500 m2/g
  • Mean pore size: 60 Å
  • Specific pore volume: 0.75 mL/g
  • Particle size: 5 to 17 μm
  • Standard grade

Thickness

  • Analytical plates: 0.25 mm
  • Preparative plates: 0.5 mm and 1 mm
  • 2 mm preparative layers use slightly coarser material

Indicators

  • Manganese-activated zinc silicate with green fluorescence (short-wave UV, 254 nm)
  • Special inorganic fluorescent pigment with blue fluorescence (long-wave UV, 366 nm)

Binders:

  • Highly polymeric products
  • Stable in almost all organic solvents
  • Resistant to aggressive visualization reagents

Specifications

Backing Material Glass
Materiale Unmodified Silica Gel (SiOH)
Dimensione particelle 5 to 17 μm
Dimensione del poro 60 Å
Quantità 200 Pc.
Tipo Glass Plates Coated with Silica Gel
Indicatore fluorescente No
Da utilizzare con (applicazione) Steroids, Antibiotics, Amines, Amino acids, Hormones, Sweeteners, Aflatoxins, Vitamins, Normal Phase (NP), Alkaloids, Analgesics, Marihuana Compounds, Patulin, Standard TLC Applications
Da utilizzare con (apparecchiatura) Thin Layer Chromatography (TLC)
Include 200x TLC Glass Plates (5 x 10 cm)
Volume dei pori 0.75 mL/g
Linea di prodotti SIL G
Assorbente SIL G
Superficie specifica ∼500 m2/g
Requisiti di stoccaggio 15°C to 25°C (59°F to 77°F)
Spessore (sistema metrico) 0.25 mm
Dimensioni (L x P) 5 x 10 cm
