The Fisher Scientific channel offers a comprehensive range of chromatography consumables including glass autosampler vials, polypropylene PP or polymethylpentene TPX chromatography vials, microvials, micro-inserts, top closures, a broad variety of different septa materials for almost all applications, vials racks, microplates as well as crimping/decapping tools.
Our Fisherbrand™ range of autosampler vials are used with GC and LC autosamplers or other automated instruments, not only are their physical specifications and dimensions crucial for trouble-free operation, but they also have to fulfill strict requirements regarding inertness and cleanliness such that contamination is minimised and analytical results are not compromised. To select the appropriate chromatography vials for your chemicals and for your autosampler equipment, simply use:

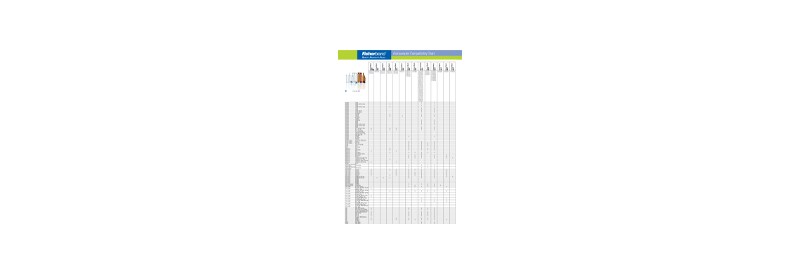

- The autosampler compatibility chart to find out the appropriate range of vials for nearly all LC, LC-MS, GC, GC-MS instruments.
- The chemical compatibility chart to verify the compatibility of vials, closures, and septa materials with over 200 chemicals.
ND8 Vials

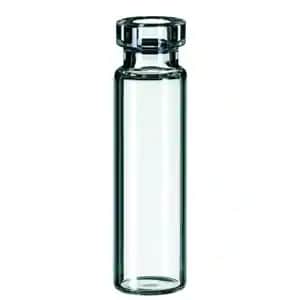

Crimp Neck Vials 8mm range
These vials are preferentially used on instruments from the following manufacturers Agilent, Beckman, Carlo Erba, CTC, Fisons, PerkinElmer, Shimadzy, Thermo Scientific, VWR (Merck™/Hitachi). Refer to the Autosampler Compatibility Chart for further information. A broad selection of ND8* crimp neck vials and microvials is available, which can be closed with 8 mm aluminium caps, 9mm PE caps or 8mm push-on caps. Note that some microvials may need an adapter for full autosampler compatibility as typically they have a conical base and are therefore not free-standing.
*ND nominal diameter
Catalog Number 7113830
Fisherbrand™ 8mm Glass Crimp Neck Vial
Catalog Number 7113873
Fisherbrand™ 8mm Aluminum Crimp Seal, Silver, Center hole, Assembled septum
Screw Neck Vials 8mm range
These vials are preferentially used on instruments from the following manufacturers: Beckman, CTC, Gilson, Knauer, Shimadzu, Spark, Varian, VWR (Merck™)/Hitachi. Refer to the Autosampler Compatibility Chart for further information).
- Polypropylene PP screw caps ND8 with centre hole or closed top (available with natural rubber/TEF, red rubber/PTFE, butyl/PTFE or silicone/PTFE seals ND8)
- Special 3-in-1 and 2-in-1 kits for VWR (Merck™)/Hitachi autosampler
- Special 2-in-1 kits for Varian autosampler
Catalog Number 7113834
Fisherbrand™ Fiala in vetro con collo a vite, filettatura 8-425, imboccatura stretta
Catalog Number 7113844
Fisherbrand™ Micro-Insert, Clear Glass, for small opening vial
Catalog Number 7113916
Fisherbrand™ Septum for 8-425 screw thread cap
ND9 Vials

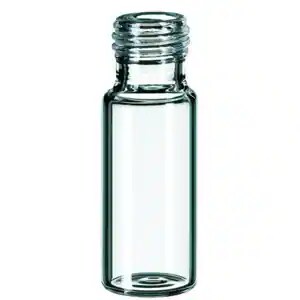

Short Thread Vials 9mm range
This is the universal autosampler vial, it can be used on all popular autosamplers thanks to its technical geometry, particularly with models manufactured by Agilent, HTA, Shimadzu, Thermo Scientific, Varian, and Waters. Refer to the Autosampler Compatibility Chart for further information.
- Polypropylene short thread seals ND9 with open or closed caps; in several colors; in magnetic version (for CTC GC PAL and Thermo Scientific TriPlus autosamplers) or certified for LC/GC-MS
- Special 2-in-1 kits for Waters Instruments
- HPLC and GC certified short thread vials kits
- Short thread vials ND9 with pre-screwed seals
- 2-in-1 kits with short thread vials ND9
Catalog Number 7113987
Fisherbrand™ Fiala in vetro con filettatura corta 9 mm, imboccatura larga, trasparente
Catalog Number 7113868
Fisherbrand™ Microinserto in vetro trasparente per fiala con imboccatura larga
Catalog Number 7113833
Fisherbrand™ Fiala in plastica con filettatura corta 9 mm, imboccatura larga
Catalog Number 7113926
Fisherbrand™ 9mm PP Short Thread Seal, Bonded, Center hole, Assembled septum
ND10 to 13 Vials
Screw Neck Vials 10 and 13mm range
These screw neck 10mm diameter chromatography vials are preferentially used on autosampler models from the following manufacturers: Jasco, PerkinElmer, Shidmazu, Varian and Waters. Refer to the Autosampler Compatibility Chart for further information.
- Screw neck vials 10mm diameter (ND10) with micro-inserts
- Polypropylene caps with seals or without seals ND10
The 13mm vials are preferentially used on autosampler models from the following manufacturers: Dionex, Shimadzu, Spark, Varian, VWR (Merck™)/Hitachi, Waters (Wisp 48 Position carousel), etc... Refer to the Autosampler Compatibility Chart for further information.
Catalog Number 7113938
Fisherbrand™ Septum for 13-425 screw cap
Catalog Number 10672923
Fisherbrand™ 13mm Vial Kit, 13-425 screw thread, Clear Glass, 4mL, PP Screw Cap, PTFE septum

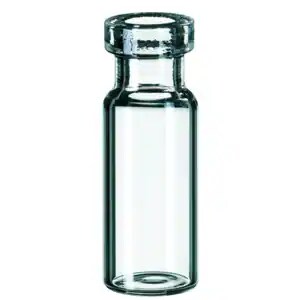

Crimp Neck Vials 11mm range
These vials are preferentially used on autosampler models from the following manufacturers: Agilent, Carlo Erba, CTC, DANI, Fisons, Gerstel, Jasco, PerkinElmer, Shimadzu, Spark, Thermo Scientific and Varian. Refer to the Autosampler Compatibility Chart for further information.
Catalog Number 7113904
Fisherbrand™ 11mm Aluminum Crimp Seal, Magnetic, Center hole, Assembled septum
Catalog Number 11804980
Fisherbrand™ 13mm Snap Cap, Transparent, Center hole
Catalog Number 7113905
Fisherbrand™ Septum for 11mm Crimp Cap

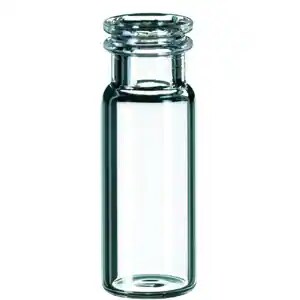

Snap Ring Vials 11mm range
These vials are preferentially used with autosampler models from the following manufacturers: Agilent, CTC, DANI, Dionex, Jasco, Shimadzu, Spark, Thermo Scientific, Varian, VWR (Merck™)/Hitachi and Waters. Refer to the Autosampler Compatibility Chart for further information. Recommended for HPLC applications only, universally usable with almost all autosamplers, including those with robotic handling.
ND22 to 24 Headspace/Shell vials

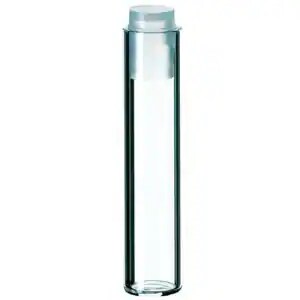

Shell Vials
These vials are preferentially used on autosampler models from the following manufacturers: Alcott, Gilson, Shimadzu and Waters (Wisp 96 48-postion carousel). Refer to the Autosampler Compatibility Chart for further information.
Catalog Number 7113973
Fisherbrand™ Shell Vial Kit, PP, Clear, PE plug

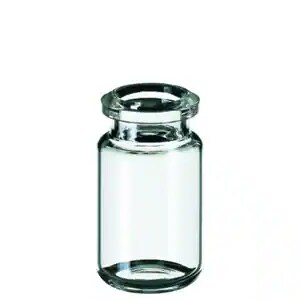

Headspace vials
As headspace vials have to withstand high internal pressures, almost all vials featured below have a wall thickness of 1.2 mm to prevent bursting. Contrary to widespread opinion the seal and not the vial represents the weakest part of the whole vial assembly. Under pressure, the septa will press and bulge against the aluminium cap with such force that the cap is torn apart.
Refer to the Headspace Vial Compatibility Chart to help you quickly identify those consumables (vials and seals) suited to your own instruments.
- Headspace crimp or screw ND18 and ND20 Vials
- Aluminium crimp caps and liners 20 mm diameter (ND20) (available with butyl, butyl/PTFE, Pharma-fix, silicone/PTFE, silicone/aluminium, UHT silicone/PTFE seals)
- Septa and stoppers 19,5 and 20mm for vials ND20
- Seals for washer bottles 20mm for vials ND20
- Magnetic screw caps for 18mm and appropriate septa 17,5mm for ND18
- Polypropylene screw cap ND18 with appropriate septa 16mm

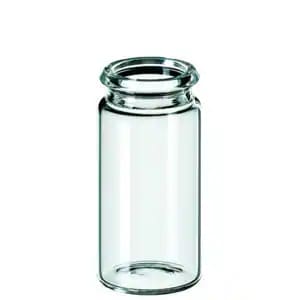

Snap Cap Vials ND18 and ND22
Easy to handle and inexpensive storage vials with push-on snap caps. For storage of powders and solids. No liners required in the cap.
Catalog Number 7113871
Fisherbrand™ Fiala, in vetro trasparente
Catalog Number 7113890
Fisherbrand™ Tappo a pressione in PE, trasparente, per fiala con tappo a pressione
Special Purpose Vials, Plates and Tools

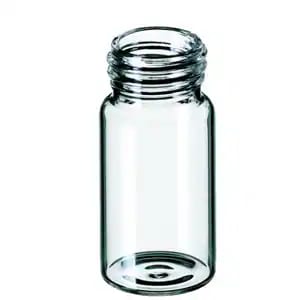

Screw Neck Vials EPA and vials for storage purposes
The EPA vials are preferentially used on autosampler models from the following manufacturers: Agilent, Dionew, Shimadzu, Tekmar, Thermo Scientific and Varian. Refer to the Autosampler Compatibility Chart for further information.
*UltraBond seals ND24 have a bonded cap and silicone/PTFE liner forming an inseparable unit which avoids the problem of liners detaching from the cap. UltraBond is achieved by a patented process that requires no adhesives but instead relies on molecular fusion of both components to achieve unity.
Catalog Number 7113843
Fisherbrand™ Fiala in vetro con collo a vite EPA
Catalog Number 7113949
Fisherbrand™ Septum for 24-400 Screw Thread Cap
Catalog Number 7113950
Fisherbrand™ Tappo a vite in PP da 24 mm, bianco, filettatura 24-400
Crimp Neck Vials for storage purposes
Catalog Number 7113840
Fisherbrand™ 13mm Crimp Neck Vial, glass, clear
Catalog Number 7113942
Fisherbrand™ 13mm Crimp Seal, Silver, center hole, assembled septum
Catalog Number 7113943
Fisherbrand™ Septum for 13mm Crimp Cap

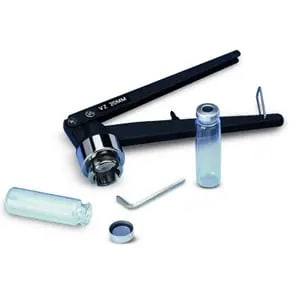

Crimping and decapping tools
Catalog Number 7113849
Fisherbrand™ Stainless Steel Manual Crimper for clean room, adjustable
Catalog Number 7113847
Fisherbrand™ Stainless Steel Manual Decapper for clean room
Catalog Number 7113878
Fisherbrand™ Crimping Heads for Programmable Electronic High Power Crimp Station
Vial racks and storage boxes
Catalog Number 7113851
Fisherbrand™ Rack in polipropilene per fiale per autocampionatore
Catalog Number 7113850

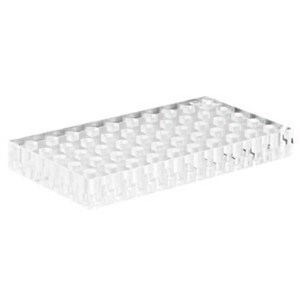

Fisherbrand™ Acrylic Racks for Autosampler Vials

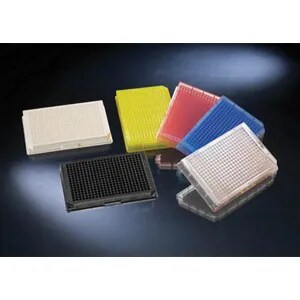

Microplates
