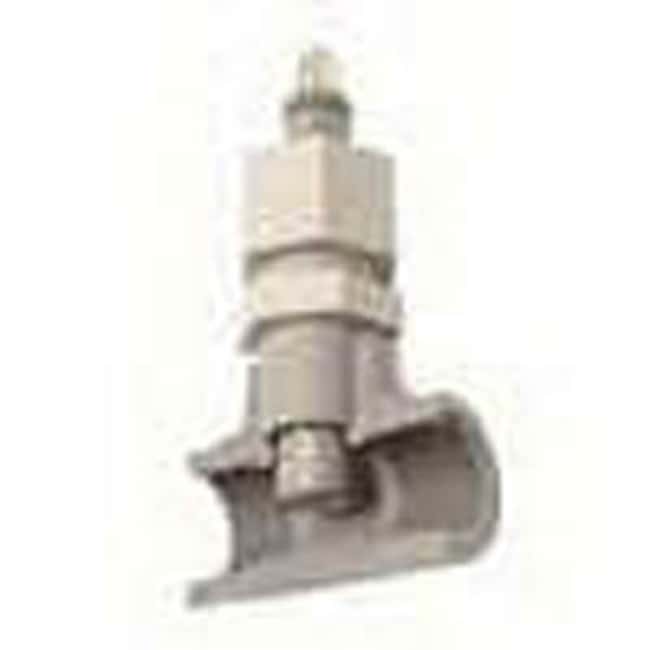

Cole-Parmer™ pH Electrode Housing, In-line, Self-cleaning

Codice prodotto. 12048588 Sfoglia Tutto Cole-Parmer Prodotti
Click to view available options
Giunzione:
Doppio
Dimensione della confezione:
Pezzo
Les retours ne sont pas autorisés pour ce produit. Consulta la politica di reso

Codice prodotto. 12048588

Marca: Cole-Parmer™ 2710600

Solo null disponibili
Aggiungi al carrello
Aggiungi al carrello
Les retours ne sont pas autorisés pour ce produit. Consulta la politica di reso

Descrizione

The flat measuring surface of the In-line, Self-cleaning pH Electrode Housing allows particles to sweep by minimizing abrasion and extending electrode life.

  • Turbulent flow provides a scrubbing action which cleans the measurement surface.
  • No moving parts and no need for external power simplifies installation.
  • Flat surface allows viscous fluids to flow by in shear preventing build up of old material and increasing measurement accuracy.
  • Extended electrode life means overall long-term cost savings.
  • Rugged combination electrodes with flat measuring surfaces are ideal for industrial pH applications.
  • In both coating and abrasive applications these cartridge type electrodes can improve measurement accuracy, reduce maintenance, prolong electrode life and virtually eliminate breakage.
  • Electrodes have a unique and innovative design.
  • In the center of the measuring surface is the pH-responsive flat glass surface.
  • This surface is surrounded by the flat porous plastic reference junction.
  • The large area of this porous junction has thousands of pores that provide excellent sample contact.
  • Built into the electrode’s body is a sealed, gel-filled double junction reference design.
  • This design provides an extra barrier against reference side contamination.
  • Also, it allows the electrodes to be used in applications where sulfides, mercaptans, heavy metal ions and similar materials are present.
  • In-line mountings are ideal for replacing existing 3/4 in. threaded electrodes.
  • They are useful in piping systems where flow can be shut off for electrode maintenance and where flow rates match the applications needs; for example, turbulent flow is needed in self-cleaning applications.
  • A simple, re-usable 3/4 in. MNPT gland is used to mount the electrode in mating openings.

Specifica

Giunzione Doppio
Materiale CPVC
Temperatura (sistema metrico) operativa 100°C
Tipo In-line pH Electrode
Da utilizzare con (applicazione) Flat measuring surface allows particles to sweep by minimizing abrasion and extending electrode life
Temperatura (sistema imperiale) operativa 212°F
