VACUUBRAND™ DVR 3 Vacuum Gauges
Sfoglia Tutto Vacuubrand ProdottiDescrizione
The DVR 3 is a fully electronic vacuum gauge with ATEX category 2 approval for use in areas with potentially explosive atmospheres (measured gas and environment of gauge);The DVR 3 has an integrated ceramic diaphragm vacuum sensor for the range from atmospheric pressure to 1 mbar with capacitive readout;The sensor measures independently of the type of gas and is exceptionally resistant to chemicals;It features outstanding measuring accuracy, very low temperature depencence and excellent long-term stability;A particular advantage of the DVR 3 is its cordless, battery-powered operation;Its simple operation and the combined digital / analog vacuum reading for precise readout and quick trend detection, respectively, make the DVR 3 very versatile.
- Large analog and digital vacuum display
- mains independent power supply unit BVE 9V, with ATEX approval, mercury and cadmium free
- enhanced battery life due to automatic shutdown and variable sampling rate
- high reliability, low EMI emission level near detection limit, high degree of immunity toelectromagneticinterference for use in industrial environ-ments
- capacitive alumina ceramic diaphragm vacuum sensor with excellent che-mical resistance, accuracy and long term stability
Specifica
Specifica

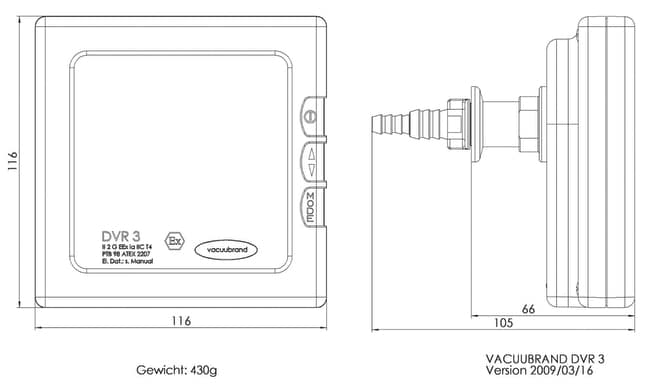

| Dimensioni (L x P x A) | 116 x 116 x 66 mm |
| Altezza (sistema metrico) | 66 mm |
| Lunghezza (sistema metrico) | 116 mm |
| Temperatura di esercizio (sistema metrico) | 10°C to 40°C |
| Peso (sistema metrico) | 0.43 kg |
| Accuracy | <±1 mbar |
| Tipo di display | Large Analog and Digital Vacuum Display |
| Product Type | Vacuum Gauge |
